| Model Number : | SC 1024x1024-P16(Two sides) |
| Brand Name : | Genilight |
| Price : | $1,300.00/pieces 1-499 pieces |
| Payment Terms : | T/T, MoneyGram, PayPal, Western Union |

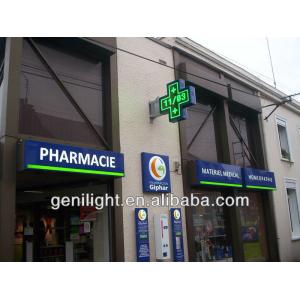

outdoor usage CE RoHS P16 P20 Pixels 3d led pharmacy cross display sign RS232 RF control communication
Single color LED pharmacy cross :
Model | SC 520×520 | SC 800×800 | SC 1000×1000 | SC 1024×1024 | SC 1200×1200 |
Pixel pitch | 10mm | 16mm | 20mm | 16mm | 25mm |
Pixel configuration | One led (red/green/blue) | One led (red/green/blue) | One led (red/green/blue) | One led (red/green/blue) | One led (red/green/blue) |
Display Pixels (one/two sides) | --- / 2560 dots | 1280 / 2560 dots | 1280 / 2560 dots | ---/ 6144 dots | 1280 / 2560 dots |
Brightness | ≥6000CD | ||||
IP grade | IP65 | ||||
Max. Power Cons. (one/two sides) | --- / 115W | 58 / 115W | 58 / 115W | --- / 273W | 128 / 255W |
Cabinet Size(cm) (one/two sides) | --- / 89×54×10 | 82×82×10 / 118×82×10 | 101×101×10 / 137×101×10 | --- / 144×108×10 | 125×125×10 / 161×125×10 |
Packing Meas.(cm) (one/two sides) | --- / 95×61×24 | 91×91×19 / 125×89×24 | 110×110×19 / 144×107×24 | --- / 152×117×24 | 134×134×19 / 169×136×24 |
Net Weight(kg) (one/two sides) | --- / 15 | 16 / 26 | 25 / 38 | --- / 48 | 38 / 58 |
Gross Weight (kg) (one/two sides) | --- / 28 | 31 / 43 | 45 / 60 | --- / 85 | 64 / 88 |
SC 1024×1024-P16(Two sides):
Specifications
1. LED chip size | red:9mil,green/blue/amber/white:12mil |
2. View Angle | H:120°(+60/-60),V:60°(+30/-30) |
3. Viewing Distance | ≥20m |
4. Input voltage (AC) | 110V~240V |
5. Input power frequency (Hz) | 50HZ~60HZ |
6. Control Mode | Asynchronous |
7. Drive Mode | 1/4 scan constant current (1200×1200 is static scan) |
8. Communication Mode | RS232,RF Wireless, WIFI(Optional)---The default configuration(RF Wireless) |
9. Control distance | RS232:<100m,RF Wireless:<800m |
10. Display content | Animation/Graphics/Word/Time/Temperature |
11. Languages | English, French, Spanish ,Greek,Russian and Italian |
12. Operating system | Windows (2000/XP/Vista/Win7) |
13. Frame Material | Steel(cold rolled iron) frame.500*500,800*800,1000*1000 can do aluminum frame |
14. Working Temperature(°C) | -45~+65(for working) |
15. Working Humidity | 10%~95%RH |
16. Life span | 100,000 hours |
17.Certificate | CE-EMC,CE-LVD,ROHS |
Product Feature:
1.Can display current temperature(format:19
°C),time(format:11:00),date(format:01/08), graphics(format:
jpg.bmp),animations(format:gif,crs) and free text messages.
2.Can display messages in
English,French,German,ltalian,Spanish,Arabic and many other
languages.
3.Operating software supports Windows2000, Vista,XP,etc.
4.User-friendly operating software allows user to edit/modify the
text,draw/clear a pictuer freely,increase/decrease the
speed,enlarge the characters height,make text scroll in horizontal
or vertical,select among tens of font sets,All operations can be
done very easily and conveniently!
5.When creating a new animation,user can open existing flash
files(GIF format) to get animations and just click OK to displsy,or
he can also modify them before display.
6.On/Off option allows messages to display at predetermined hours
and minutes.
7.Set Bright option allows adjusting the brightness at
predeterminde time.
8.Thin and slim display body,front access maintenance.Programmable
with wire or wireless control.
9. Waterproof of design for outdoor use: outside metal frame can be
sprayed in color of customer’s choice.
Applications:
"outdoor usage CE RoHS P16 P20 Pixels 3d led pharmacy cross display sign RS232 RF control communication"
1.OEM is available.
2.Our all produces are with 1-3 years warranty.
3.Our trademessage is 24 hours on line.
4.we will reply your email asap .
Notes:LED parmacy cross would be certificated with CE LVD RoHS etc ,more certificates would be satified as your reuqest.
1. Do you accept custom design?
Yes, any design and any size are available.
2. Is the product safe?
Yes ,output is 12V voltage is Safe to touch and clean.
3. Do you have any certification for the products?
Yes ,our products and adapter are with CE-EMC, CE-LVD, ROHS etc
certification.
4. How long have you produced led sign?
We have more than 5 years experience in led sign.
5.What payment are you accept?
We accept payment method: T/T ,Western Union, Money
Gram,Paypal,ect.
Genilight Optoelectronic Technology Co., Ltd. have a strong R&D staff who are professional in the areas of LED application,electronics, illu mination, structure, LED special power supply, technical design and so on. With industrious hardworking, we have developed super high brightness LED with low degradation and launched many series of LED lighting products, including Series universal for both Indoor and Outdoor application, Series for led fluorescent light, Series for led high power spotlight, Series for led bulb, Series for led sign, Series for led strip,Series for led modules etc.
Thanks for browsing our products. Any more questions, please no hesitate to tell me.
